Description

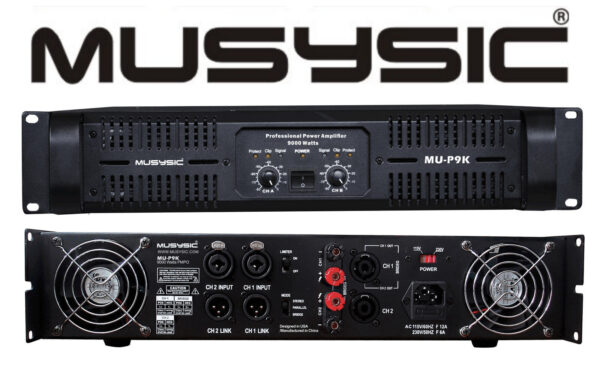

2 Channel Professional Power Amplifier

9000 Watts Peak Output

ATR (Accelerated Transient Response) technology for ultimate punch and clarity

MUSYSIC’s audio engineers have specifically designed the new MU-Series power amplifiers to be perfect companions to the popular Club Series loudspeakers. To achieve this, they made sure that the amplifiers are capable of delivering power that matches the power handling capabilities of the Club Series Speakers, and equipped them with ATR (Accelerated Transient Response) technology for ultimate punch and clarity to deliver a signal that will result in optimum system performance.
Each MU-series amplifier is equipped with this specially designed circuit so that it delivers output tailored to the specific response of the Club Series speakers. All models feature both XLR and 1/4-inch TRS inputs, and Speakon, Banana binding post outputs. High performance with exceptional efficiency, sweepable high and low pass filters for matching output to any loudspeakers, a compact and durable 2U chassis, and variable speed cooling dual fans.

Specifications:

Model MU-P9K
2ΩStereo Output Power 2x5600W PEAK, 2x2800W Program, 2x1400W RMS
4ΩStereo Output Power 2x2800W PEAK, 2x1400W Program, 2x700W RMS
8ΩStereo Output Power 2x1400W PEAK, 2x700W Program, 2x350W RMS
4ΩBridge Output Power 5600W PEAK, 2800W Program, 1400W RMS
8ΩBridge Output Power 2800W PEAK, 1400W Program, 700W RMS
Frequency Response 20Hz-20KHz,+0,-1dB at watts
THD+N(20Hz-20KHz) ＜0.23％20Hz-20KHz　　　
Siew Rate ＞30V/us
Damping Factor ＞150
Output Circuitry Class AB
Signai to Noise Ratio ≥96dB
Cross Talk ＞80dB
lnput Sensitivity(8Ω) 1V
input lmpedance 20 k Ω baiance / 10 k Ω unbalanced unbalance balancing 20 k / 20 k

Cooling Dual cooling fans
Connectors Input: XLR input, 1/4″ input: XLR Output: Speakon connector Output: Speakon, locking type socket, Banana plug connection output
Controls Panel: the power switch, channel 1 and channel 2 channel gain control; After the board: working mode, pressure limit.
lndicators Panel: the power switch, channel 1 and channel 2 channel gain control; After the board: working mode, pressure limit.
Amplifier Protection With short circuit, overload, overheat, cut peak pressure limit, dc, soft start, relay zero current switch, super audio and radio frequency protection device.
Gross Weight/Net Weight 36.1 lbs/30.4 lbs
Packing Dimensions 22.16″x22.18″x4.9″
Power Requirements 110v-230v Switchable
